Drone Robotics
Drones, equipped with high-resolution cameras and advanced sensors (such as LiDAR or photogrammetry tools), are capable of capturing detailed imagery and data for a wide range of applications.
2D Imaging
- Aerial Photography: Drones capture high-resolution images from above, often following a pre-programmed flight path.

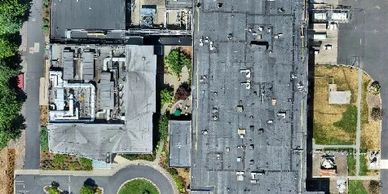

- Orthomosaic Maps: Multiple overlapping images are stitched together using photogrammetry software to create a single, geometrically corrected 2D map.
- Applications: Agriculture, land surveying, real estate, and construction.

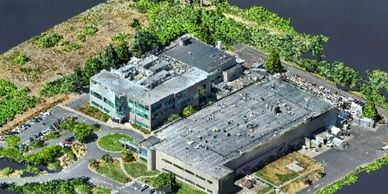

3D Imaging
- Photogrammetry: The drone captures overlapping images from various angles. Specialized software (e.g., Pix4D, DroneDeploy) uses these images to construct 3D models by identifying common points and reconstructing surfaces.

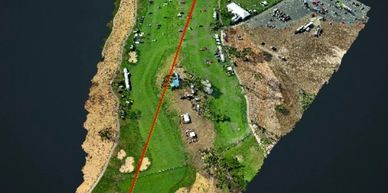

- LiDAR (Light Detection and Ranging): Some drones use LiDAR sensors to emit laser pulses, measuring the time it takes for them to return. This creates accurate 3D point clouds, especially useful in dense vegetation or low-light conditions.
- Output Formats: 3D meshes, point clouds, and digital elevation models (DEMs).
Volume Metrics Measurements

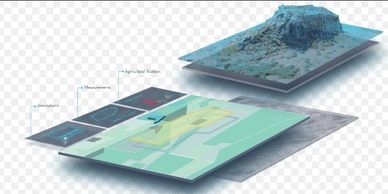

- 3D Data Analysis: Using the 3D models or point clouds generated, software can calculate volumes by defining the base area and comparing surface elevations.
- Typical Use Cases:
- Measuring stockpiles (e.g., sand, gravel, coal)
- Cut-and-fill analysis in earthworks
- Monitoring excavation and land movement
- Accuracy: Depending on the method and drone hardware, volume measurements can achieve accuracies within 1–3% of ground-truth measurements.
Summary
Drones provide efficient, safe, and cost-effective solutions for creating accurate 2D maps, detailed 3D models, and precise volume measurements. By combining aerial imaging with advanced software, they transform data collection across industries like construction, mining, agriculture, and surveying.
